Description
The Hawke Airmax 30 Touch 3-12×32 SF AMX IR 10x Mil Dot Scopeis designed to work best with PCP airguns and provides an incredible 37-degree,super wide angle field of view. It delivers excellent performance because theH2 optics system has 16 layer fully multi-coated lenses, and the scope utilizesa 32mm objective lens and a 30mm aluminum mono-tube.
The capped target turrets on this scope adjust in a range of75 MRAD for both elevation and windage using 1/10 MRAD increments, and the sidefocus knob provides parallax-free views from 10 yards to infinity. The lenses arefog proof, waterproof, shockproof, and nitrogen purged to yield a clear sightpicture despite poor lighting or weather.
The Hawke Airmax 30 Touch uses a second focal plane (SFP) AMXIR 10x Mil Dot reticle with etched glass and accurate spacing on the 10x magnificationsetting. Six separate levels of red illumination can be activated, with offpositions between each level. The reticle features aim points on the first 5mil portions of the vertical and horizontal lines that are 1 mil apart, inaddition to hollow posts with mil spacing for bracketing past the aim points.The bottom has horizontal bars every 1 mil starting at .5 mil and ending at 4.5mil, for long-distance precision.
The package includes a rubber eyepiece, 3″ sidewheel,hex key, CR2032 battery, lens cloth, lens covers, reticle booklet, and instructionmanual. To get a scope with an outstanding field of view and featuresconfigured for airguns, buy the Hawke Airmax 30 Touch 3-12×32 SF AMX IR 10x MilDot Scope at Pyramyd AIR now.
Helpful resources:
- Learn how to pick the right scope
- Tips for picking scope mounts

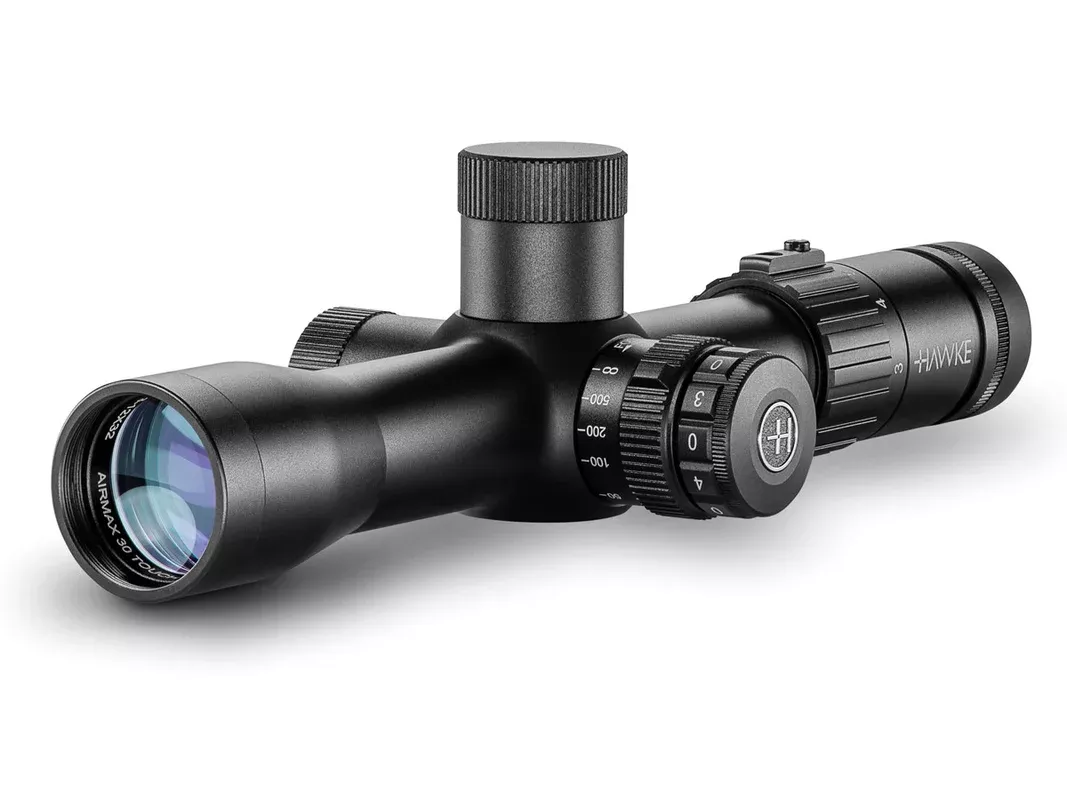

Hawke Airmax 30 Touch 3-12×32 SF AMX IR 10x Mil Dot Scope
- 30mm aluminum mono-tube
- 32mm objective
- 3-12x optical system
- Capped target turrets
- Side focus, 10 yards to infinity
- Super wide angle 37-degree FOV (63.8-18.2ft @ 100 yards)
- 1.2″ (30mm) eye relief with .42″-.11″ (10.7mm-2.7mm) exit pupil
- Elevation and windage adjustment range: 75 MRAD, in 1/10 MRAD increments
- 10.5″ long, 20.2oz
- H2 optics system
- 16 layer fully multi-coated lenses
- High torque zoom ring
- Fast focus eyebell with lock ring
- Nitrogen purged
- Shockproof, fog proof, waterproof
- Hawke no-fault lifetime warranty
- 10x second focal plane (SFP) AMX IR mil dot reticle
- Etched glass reticle with 6 levels of red LED illumination
Brand
Hawke Sport Optics
Weight
1.26 lbs
Min Magnification
3 x
Max Magnification
12 x
Objective Size
32 mm
Min Eye Relief
1.2 in
Max FOV at 100 Yards
63.8 ft
Min FOV at 100 Yards
18.2 ft
Focal Plane
Second (SFP)
Max Windage
75
Max Elevation
75
Click Value
.1 MIL
Click Adjustment Type
MIL
Max Parallax
Min Parallax
10 yds
Parallax
Adjustable
Tube Diameter
30 mm
Illumination
Red
